Plastic Sintered Liquid Cartridge Filter Industrial Waste Water Gas Air Treatment

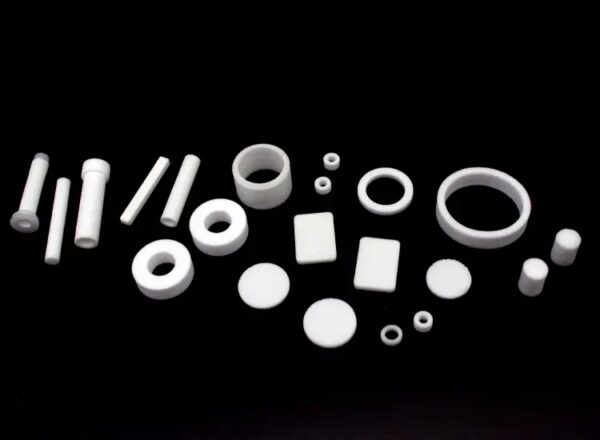

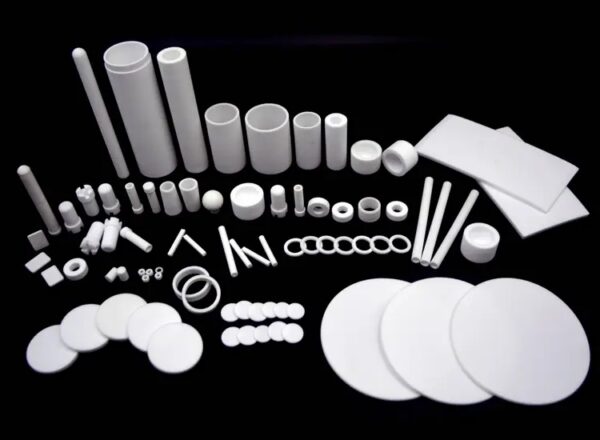

Lvyuan produces wide ranges of sintered porous plastic filter products, including porous PE, HDPE, PTFE, PVDF, PA, Nylon 6, fiber-glass with shapes of tube, rod, candle, sheet, plate, disc, stick etc. With various filtration rate, shapes and features, sintered porous plastic filter cartridges are widely used in water treatment, chemical engineering, medical treatment, automobile, environmental protection and other industries, such as oil water separator and silencer, drunk driving tester, blind plug for medial treatment, syrup and grease filter device, anti-explosion slices for industrial battery, acid-proof slices for automobile battery, waste water treatment, water purification filter system and more. Lvyuan sintered porous platics filters can meet requirements of different customers. Custom molded Shapes are available.

Product Feature

1. High porosity to ensure a greater flow per unit area; 2. Smooth outer surface, impurities are not easy adhesion, back washing easy and thorough; 3. Anti-fouling ability: the small size of the filter so that impurities can’t be retained in the filter body; 4. Resistance to strong acid, alkali corrosion, resistance to organic solvents; 5. Excellent mechanical properties; 6. No particle release. 7. Wide Product range and wide scope of application

Filter Media	PE, HDPE, PTFE, PVDF, PA/Nylon etc
Micron rate	0.2um, 0.5um, 1um, 3um, 5um, 10um, 25um, 30um, 50um, 75um, 100um, etc
Reference dimension (mm)	31x12x1000, 31x20x1000, 38x20x1000, 38x18x1000, 38x20x1200, 38x20x1300, 38x20x150, 38x20x400, 38x20x250, 38x20x200, 38x20x180, 38x20x150, 50x20x1000, 50x31x1000, 50x38x1000, 65x31x1000, 65x38x1000, 64x44x1000, 78x62x750mm, etc.
Connector type	DOE, SOE, Flat, insert, thread, 226, 222, 215, M36, M30, M27, M25, M22, M14, M12, or as request.
Max. operating temperature	PE≤82℃; PTFE≥200℃; PA≤120℃

Plastic Sintered Liquid Cartridge Filter Industrial Waste Water Gas Air Treatment 2

Medical & Pharmaceutical

1. Impurity removal, decarbonization and fine filtration. 2. Acid Gas Dry deducting 3. Decarbonization Filtration 4. Self sealing filters in suction liner bag

Food & Beverage

1. Remaining yeast and diatomaceous earth filtration 2. Clarification filtration in beverage 3. Water filtration in beverage, brewery 4. Sterile air filtration in beer and brewery

Oil & Gas

1. Organic Solvents recycling filtration 2. Injection water filtration 3. Steam, Compresses air and catalyst filtration 4. Final product end filtration

Chemical

1. Catalyst recovery 2. Medicine intermediate decarbonization and fine filtration 3. H2O2 process filtration

Water Treatment

1. Protection of reverse osmosis in desalting of sea water 2. Sterile Ozone filtration and ozone aeration 3. Protection of ultra filter, RO, EDI systems

Industry

1. Filters in flue gas analysis and CEMS systems 2. Air aeration 3. Muffler and Silencer 4. Compress air filtration 5. CMI Porous Metal Instrument filters

Certifications

Rezensionen

Es gibt noch keine Rezensionen.

Schreibe die erste Rezension für „Plastic Sintered Liquid Cartridge Filter Industrial Waste Water Gas Air Treatment“

Product Description

Replacement P/A/L/L Polypropylene depth filter cartridge price for oil paint hydraulic water filtration

Polypropylene melt blown filter cartridge or PP spun water filter, PP filter, PP filter cartridge is the most widely used filtration consumable products in domestic and industrial water treatment systems. PP melt blown filter cartridges (PPF) are made of 100% pure polypropylene fiber, providing broad wide chemical compatibility.

Melt Blown sediment filter cartridge has strong pollutants holding capacity. It can remove suspended substances, particulate and rust effectively, providing efficient filtration and long service life. It works an important role in the pre-filtration water treatment process.

We can customs-made PP or Nylon melt blown filter cartridges in all dimension (Length, Outer diameter, inner diameter) with 1 layer to more than 3 layers and multi-layers. Special PP/Nylon melt blown cartridge filters with varied specifications like groove, orange peel, pressure point, flat and embossing surface finish or equipped with different DOE or SOE end caps are also available.

All dimension can be custom-made. In order to work out the prices for you, please kindly advise your specification requirement and quantity.

Flat surface PP sediment filter cartridge

Pressure point surface PP sediment cartridge

PP shell Polypropylene melt blown filter cartridge

OEM Various size PP Nylon melt blown filter cartridge for water air filtration — OEM Various size PP/Nylon melt blown filter cartridge for water/air filtration

Big High Flow PP melt blown filter cartridge with OEM length and OEM diameters

Specification

Product Name	PP Melt Blown sediment filter cartridge
Length	5, 10, 20, 30, 40", 50'', 60'' inch or customized
Micron Rate	1, 3 ,5 ,10 ,20 ,25 ,30 ,50 ,75, 100 micron
End Cap	DOE/SOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat, 215+Flat/Fin
Inner Diameter	28~30mm, or OEM
Outer Diameter	60~65mm, Jumbo 110~115mm, or OEM
Gasket/O ring material	Silicon/EPDM/NBR/Viton
Material	100% pure Polypropylene or Nylon
Surface	Groove, Pressure points, Flat, Embrossing, Orange peel
Inner core	None, PP or stainless steel
Interface	Flat or insert
Max. Operating Pressure Difference:	• 80°C: 1.2kg/cm2 • 60°C: 2.1kg/cm2 • 20°C: 4.2kg/cm2
Max. Operating Temperature	80°C
Recommended Change-out Pressure Difference	2.1 bar (kg/cm2)
Common weight	100- 120g/10" (It can be customized)

Application

1. Drinking Water Treatment
2. Industrial water treatment, like electronic, power, plating and oil industry.
3. Pre-filtration of RO/DI system
4. Food and Beverage
5. Sea Water Desalination
6. Chemical, solvent, wine, etc.
