Guangzhou Lvyuan Water Purification Equipment Co., Ltd. is an industrial filter manufacturer founded in 2009 that designs and manufactures stainless steel filter housings, stainless steel sterile water tanks, filter elements, filter bags, ultra-polymer materials, and sintered filter products. Buyers choose Lvyuan for OEM/ODM support, ISO9001 quality control, and multi-country certifications.
| item | details |
|---|---|
| start port | guangzhou |
| production capacity | 10000 units/month |
| place of origin | guangdong, china |
| payment | t/t, western union, alibaba trade assurance |
| moq | 1 pcs |
| model | ly-hfpl-7 |
| delivery time | within 7 working days |
| certification | iso 9001 |
| brand | oem/lvyuan |

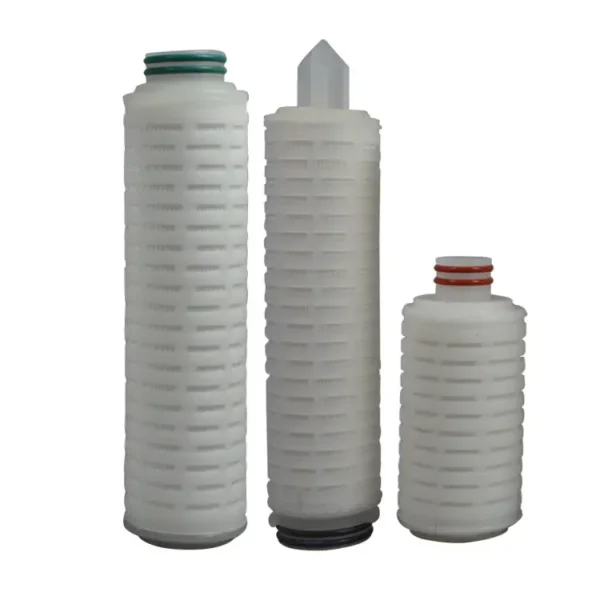

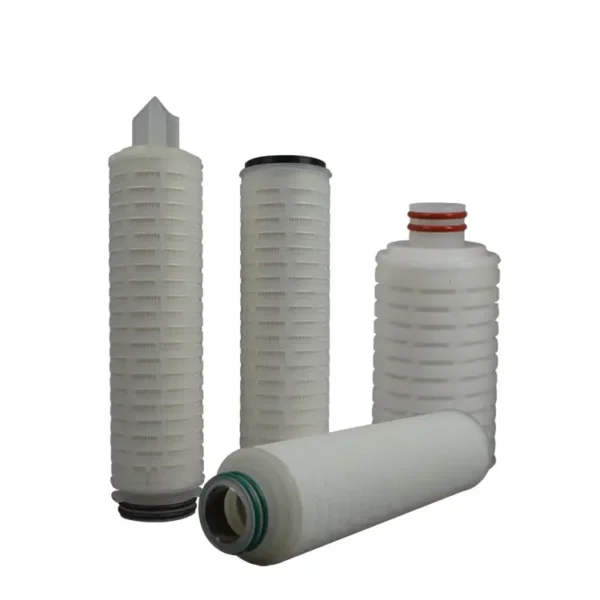

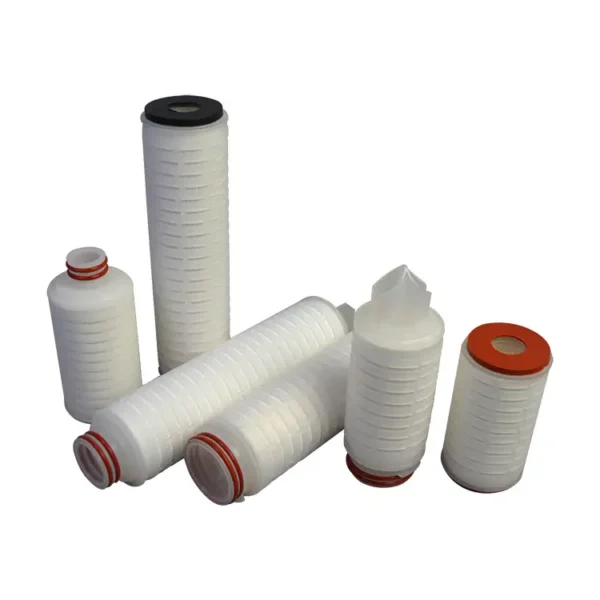

PTFE Pleated Filter Cartridge
Hydrophobic PTFE series pleated filter cartridge is constructed of hydrophobic PTFE membrane which has excellent chemical compatibility and corrosion resistance. This filter cartridge is suitable for the filtration to liquid and gas with strongly aggressive and oxidative.
Hydrophilic PTFE series pleated filter cartridge is contructed of hydrophilic PTFE membrane which has excellent chemical compatibility and corrosion resistance. The membrane is hydrophilic which can filter liquid directly without pre-wetting to save the operation time.
|
Filter Media Option
|
PP
|
PES
|
PTFE
|
Nylon 6/66
|
PVDF
|
|
Length
|
2.5”, 5, 10, 20, 30, 40 inch
|
2.5”, 5, 10, 20, 30, 40 inch
|
2.5”, 5, 10, 20, 30, 40 inch
|
2.5”, 5, 10, 20, 30, 40 inch
|
2.5”, 5, 10, 20, 30, 40 inch
|
|
Micron Rate
|
0.1, 0.2, 0.45, 0.65, 0.8, 1, 2, 3, 5, 10, 20, 25, 30, 50, 60 micron
|
0.1, 0.2, 0.45, 0.65 micron
|
0.2, 0.45 micron
|
0.2, 0.45, 0.65, 1 micron
|
0.2, 0.45 micron
|
|
End Cap
|
DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat
|
DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat
|
DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat
|
DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat
|
DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat
|
|
Inner Diameter
|
28mm
|
28mm
|
28mm
|
28mm
|
28mm
|
|
Outer Diameter
|
69mm (can be customized)
|
69mm (can be customized)
|
69mm (can be customized)
|
69mm (can be customized)
|
69mm (can be customized)
|
|
Gasket/O ring material
|
Silicon/EPDM/NBR/Viton/Teflon
|
Silicon/EPDM/NBR/Viton/Teflon
|
Silicon/EPDM/NBR/Viton/Teflon
|
Silicon/EPDM/NBR/Viton/Teflon
|
Silicon/EPDM/NBR/Viton/Teflon
|
|
Effective filtration area
|
0.4-0.7m²
|
≥5m²
|
≥0.72m²
|
≥0.6m²
|
≥0.72m²
|
|
Max.working pressure difference
|
0.42Mpa at 25ºC
|
0.42Mpa at 25ºC
|
0.42Mpa at 25ºC
|
0.42Mpa at 25ºC
|
0.42Mpa at 25ºC
|
|
Max.back pressure
|
0.28Mpa at 60ºC
|
0.21Mpa at 25ºC
|
0.35Mpa at 60ºC
|
0.35Mpa at 25ºC
|
0.21Mpa at 25ºC
|
|
Max. working temperature
|
88ºC at 0.28Mpa, 60ºC at 0.42Mpa
|
140ºC at 0.28Mpa
|
142ºC at 0.276Mpa
|
49ºC at 0.21Mpa
|
80ºC at 0.173Mpa
|
|
Sterilizing temperature
|
121℃, 30mins
|
121℃, 30mins
|
121℃, 30mins
|
121℃, 30mins
|
121℃, 30mins
|
1. Electronic industry: RO reverse osmosis water system prefiltration, deionized water system prefiltration.
2. Food industry: filtration of beverage, beer and mineral water.
3. Chemical industry: filtration of organic solvent and ink.
4. Pharmaceutical industry: filtration of pharmaceuticals, biologicals, serum products, compressed air and gas.
5. Others: filtration of plating solution, process fluids, photoresist and magnetic media
| Product Name | PP Melt Blown sediment filter cartridge |
| Length | 5, 10, 20, 30, 40", 50'', 60'' inch or customized |
| Micron Rate | 1, 3 ,5 ,10 ,20 ,25 ,30 ,50 ,75, 100 micron |
| End Cap | DOE/SOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat, 215+Flat/Fin |
| Inner Diameter | 28~30mm, or OEM |
| Outer Diameter | 60~65mm, Jumbo 110~115mm, or OEM |
| Gasket/O ring material | Silicon/EPDM/NBR/Viton |
| Material | 100% pure Polypropylene or Nylon |
| Surface | Groove, Pressure points, Flat, Embrossing, Orange peel |
| Inner core | None, PP or stainless steel |
| Interface | Flat or insert |
| Max. Operating Pressure Difference: | • 80°C: 1.2kg/cm2 • 60°C: 2.1kg/cm2 • 20°C: 4.2kg/cm2 |
| Max. Operating Temperature | 80°C |
| Recommended Change-out Pressure Difference | 2.1 bar (kg/cm2) |
| Common weight | 100- 120g/10" (It can be customized) |
1. Drinking Water Treatment
2. Industrial water treatment, like electronic, power, plating and oil industry.
3. Pre-filtration of RO/DI system
4. Food and Beverage
5. Sea Water Desalination
6. Chemical, solvent, wine, etc.
