Hochwertiger Mikrofilter aus gesintertem Edelstahl zur Wasseraufbereitung

Hochwertiger Mikrofilter aus gesintertem Edelstahl zur Wasseraufbereitung

latest_price_title
quantity_needed:
pieces
E-Mail:
Sinterfilterpatrone aus Edelstahl
SIDEBAR TITLE
Jack hanson
020-123456789
jack@qq.com
020-987654321
jack 2015
Scan our QR code to contact us and you will get latest catalog and portfolios for FREE!
Overview
Quick Details
Condition:
New
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops
After Warranty Service:
Online support
Local Service Location:
none
Showroom Location:
none
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Ordinary Product
Warranty of core components:
1 Year
Core Components:
Pressure vessel
Place of Origin:
Guangdong, China
Brand Name:
Guangzhou LvYuan
Warranty:
Unavailable
After-sales Service Provided:
Online support, No overseas service provided
Product name:
Sintered Stainless Steel micro Filter
Length:
10'', 20'', 30'', 40'',60''
Material:
SS304/316L
Micron Rate:
0.1-300 micron
Layers:
5 layers
Interface form:
222,226,215, M36, M24, M22, M20 thread interface
Heat resistance:
- 200 -- 500 degree
Usage:
Filter water, beverage, wine etc.
Working pressure:
0.1 - 30Mpa
Supply Ability
Supply Ability:
500 Piece/Pieces per Day Sintered Stainless Steel Filter

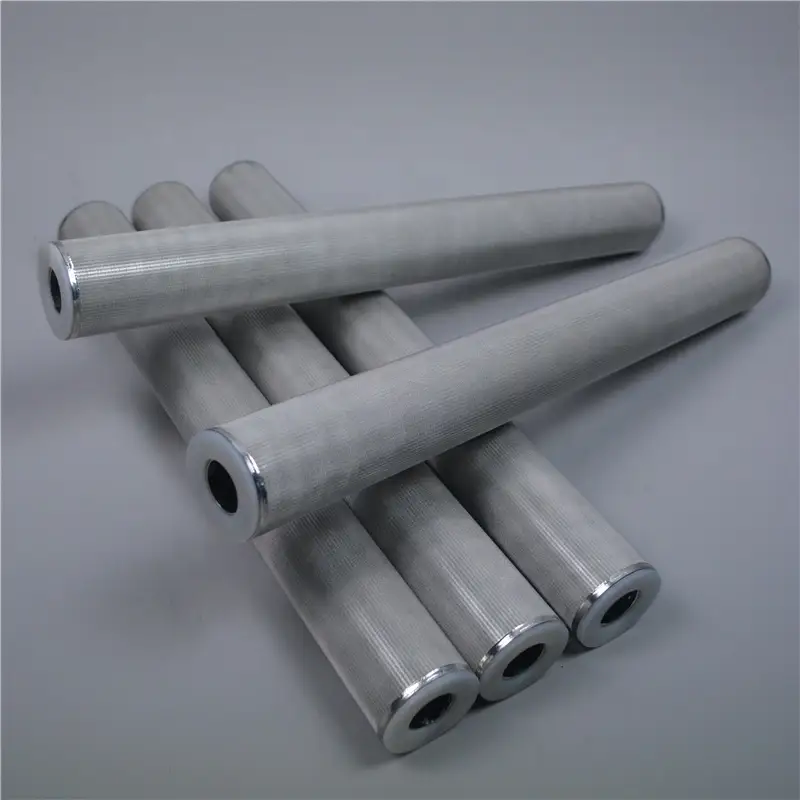

 High quality Sintered Stainless Steel micro Filter for water treatment



Product Description







Sintered mesh filter series ----



Main material of the sintered mesh filter adopts standard five-layer sintered mesh,

which is made by using special process of lamination molding and vacuum sintering on five-layer

stainless wire cloth. The filter is characterized by strong corrosion resistance, fine penetrability, high strength,

easy washing and back washing, accurate filtration precision, clean filter material, solid mesh, etc.

Main connection modes are standard interface (such as 222, 220 and 226), fast interface connection, thread,

flange and pushing rod connection, special custom interface. The material has widely applied for the filtration

of polyester,water treatment, oil product, pharmacy, foods and beverage, chemical industry, chemical fiber

products and high-temperature air medium.



1.The standard five-layer mesh is composed of protective layer, precision control layer, dispersion layer, two strengthening layers.

2.High intensity: as the five-layer wire mesh is sintered, it is characterized by extremely high machinery strength and compressive strength.

3. High precision: It can realize uniform surface filtration for the material with 2-200um filtration granularit.

4. Heat resistance: It can be applied for the continuous filtration under -200  ~ 500 degree centigrade.

5.Washing performance: The surface filtration structure with fine back washing effect, the washing course is simple.







Filter cylinder series of high temperature dedusting sintered mesh ---



The traditional temperature dedusting method is to transfer the high temperature air into non-metal

filter bag through cooking system, however, the highest temperature of non-metal filter bag can only 260 degree centigrade, the high temperature resistance of sintered mesh filter cylinder that is made of multiple layer special stainless wire mesh will reach 600 degree centigrade, which overcomes the disavantages of traditional filter bag like non-fire resisting quality non renewability low intensity and bad wear resistance.



1.It can be customized according to dimensions of non-metal filter bag

2.Fine permeability, low pressure drop, uniform and stable precison, fast filter cake formation process

3.Fine regenerability, easy drop of back washing filter cake, fast formation speed, facilitated installation







Filter cylinder series of water treatment equipment ---



This series product adopts punch plate composite sintered mesh as the filtration material,

reasonable arranges the mesh layer distribution and mesh number based on different operation conditions and purposes. As the filter cylinder integrates the proof pressure framework with the sintered filter screen, the product is superior to any other filtration materials in the respects of higher machinery strength, optimum back washing effect and less pressure drop loss. Thus it has been widely applied for the intelligent washing equipment, intelligent differential pressure water treatment equipment., food and beverage filtration equipment.

The MONEL.dual phase steel, titanium alloy and other punch plate composite sintered mesh filter cylinder serial products manufactured by our company are highly praised and have been widely promoted and applied in fields of large scale sea water filtration treatment.



1.Punch plate material is 304 or 316L, the punch pore can be square or round

2.It can be manufactured as different products according to different shape requirements

3.It can be customized as different materials with different thicknesses as required by the client

4.The MONEL, dual phase steel, titanium alloy and other punch plate composite sintered mesh can

be customized according to operation conditions







Melt filter series ---



The melt filter is a folded stainless, whose main material adopts stainless fiber sintered felt and stainless wire cloth. The melt filter of sintered felt possesses such advantages as high porosity, large filtration area, strong discharge capacity, repeatability, stable shape, high shock resistant and alternating load capacity superior to other metal filtration materials.

The melt filter of stainless wire cloth is characterized by high intensity, non-dropping ,easy cleaning, high temperature resistance, beneficial application, etc. The appliance scope: it is mainly used for the filtration of high polymer, drug, hydraulic oil, water treatment and high temperature air.



1.The melt filter is characterized by high porosity, fine permeability, small resistance,

low operation differential pressure

2.The folded filter will realize large filtration area and much more discharge capacity

3.High temperature and corrosion resistance, it is applicable to the high thick liquid filtration

4.Complete stainless steel structure, strong chemical compatibility



Main technical parameters

1. Maximum operating temperature of filter: ≤500 degree centigrade

2.Filtration precision: 1 - 200um

3.Filter specification: 5 - 40 inches (it can be fabricated according to clients’ requirements





Company Honor

Company products certified by CE certification, the European Union BV, SGS certification and national health inspection and quarantine departments inspection report and the ministry of health approval documents issued by the hygiene license etc.
