PP pleated filter cartridge deliver high efficiency and consistent filtration of fluids in a wide range of critical applications. They are constructed of pleated membrane filter media that provides removal of particles from 0.1 to 60um, the pore size is not affected by the vibration of
feeding pressure, due to its unique low differential pressure, high flow volume, excellent filtration microns. The high surface area ensures long service life and low initial pressure drops.
SOE 222/Flach/Lamellen-Wasserkartuschenfilter aus Polypropylen mit hohem Durchfluss und 10 Mikron für die Erdöl-/Ölindustrie
5.0
Port starten:
Guangzhou/Shenzhen
Produktions kapazität:
10000pc/month
Ursprungs ort:
Guangzhou
Zahlung:
T/T, Western Union, Alibaba Trade Assurance
MOQ:
1pc
Liefer frist:
15-25 days
Zertifizierung:
SGS, ISO 9001
Marke:
OEM/Lvyuan
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Bitte füllen Sie das untenstehende Formular aus, um ein Angebot anzufordern oder weitere Informationen über uns anzufordern. Seien Sie bitte so detailliert wie möglich in Ihrer Botschaft, und wir werden uns so schnell wie möglich mit einer Antwort bei Ihnen melden. Wir sind bereit, an Ihrem neuen Projekt zu arbeiten, Kontaktieren Sie uns jetzt, um loszulegen.

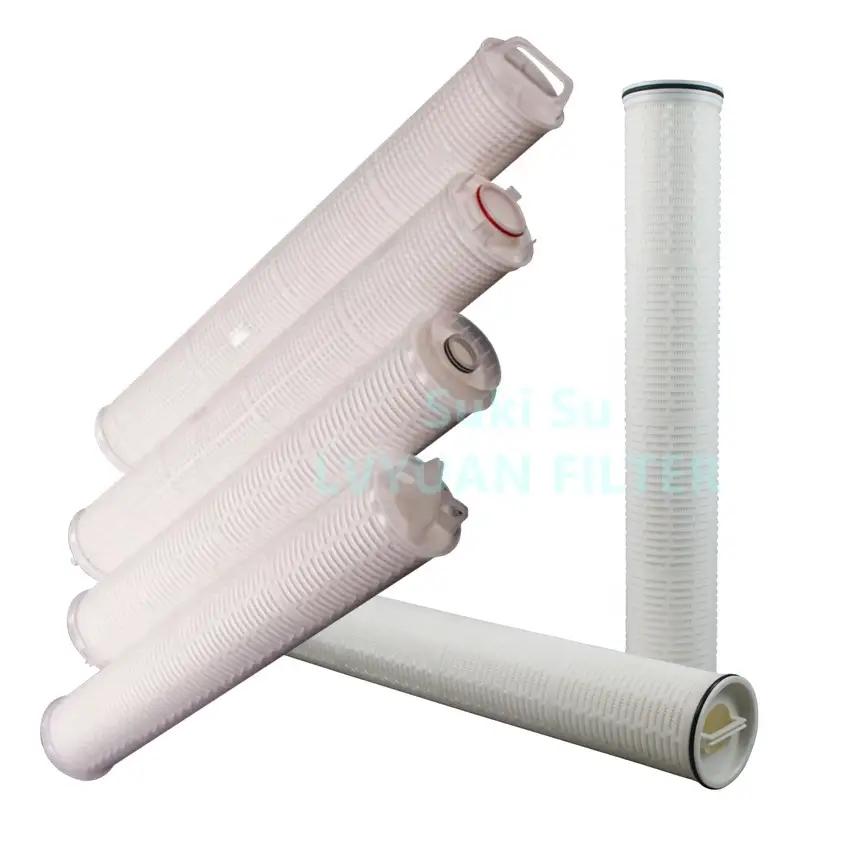

High flow SOE 222/flat/fin 10 microns polypropylene pleated water cartridge filter for petroleum/oil filed industry
Descripción del Producto
Nombre del producto
|
High flow SOE 222/flat/fin 10 microns polypropylene pleated water cartridge filter
for petroleum/oil filed industry
| |||
Longitud:
|
10"/20"/30"/40"/50"
| |||
OD:
|
64mm
| |||
ID: |
28mm
| |||
Filter membrane media:
|
Glass fiber, Polypropylene PP, PET
| |||
Seal Material: |
EPDM, Silicone, NBR, Viton
| |||
End cap material: |
222+FIN END; DOE; 222+Flat End
| |||
Center core: |
Polypropylene PP
| |||
Outer cage: |
Polypropylene PP, blue/red/white colors optional.
| |||
Microns rating: |
1um, 2um, 3um, 5um, 10um, 20um, 25um, 30um, 50um, 75um,100um
| |||
Operating pressure: |
Withstand differential pressure up to 60psi(4bar) at ambient temperature.
Differential pressure is 35psi (2.5bar) up to 52℃.
| |||
Service condictions: |
5 bar at 20℃； 3bar at 65℃
| |||
Aplicaciones:
|
RO water treatment prefiltration;
Electronic;
Oil & Gas liquid;
Petroleum industry.
| |||
MOQ
|
50pcs/Box, 25pcs/Box
| |||
Polypropylene PP/Fiberglass/PET pleated filter cartridge
Guangzhou Lvyuan Water Purification Equipment Co., Ltd., we manufacture in a wide range of sizes and microns options filter elements and fits to different specification of filter housings. This type of pleated cartridge filter has superior flow characteristics with very low pressure drop compared to depth media of similar microns rating. It has large filtration area and design, allow the use of a reduced number of cartridges, high dirtholding capacity and long lifetime. Fully thermal welded construction can be used safely on high temperature oily water, solvents, acid and diesel.
Características:
1. To fit into different standard sizes water filter cartridge housing
2. High dirtholding capacity and high flow rate
3. Large capacity filtration area and depth filtration provides a long lifetime of pleated cartridge water filter.
4. Low filter cartridges replacement cost, because of the large filter area to reduce labor costs to change.
5. The glass fiber media can be used safely on the high temperature liquid water, diesel, oily liquid, chemical solvents, acid and alkali.
Productos relacionados
Pleated PP/PES/PTFE/PVDF/Nylon membrane filter for water/air filtration treatment:
-
Microporous pleated filter element, the main filter material is : Polypropylene, Hydrophobic PTFE, Hydrophilic PTFE,Polyether sulfone, Nylon, etc.
-
Most of the raw materials are imported from abroad.Pleated filter element is a kind of deep filtration filter,it is usuaslly used as liquid overheating,clarification, filtration and terminal filter.
-
It has the following characteristics: the superfine polypropylene fiber membrane as the filtration medium, low pressure differential, high flux, good filtration precision, lower economic cost.
-
The whole structure of polypropylene, end cover, housing and center pole adopts polypropylene material; It adopts the hot melt welding process, PP and PP melt bonding,without any binder.
-
It has wide range of chemical compatibility, and also has a series of pore size and form a variety of interface.Material: Pleated filter, Support layer, End-cover, Inside & Outside cylinder are polypropylene.
-
Welding: It adopts the uniquehot melting methods, no glue, no foreign body fall off.
Typical use: Pharmaceutical, Food, Chemical, Electronics, Environmental protection, etc. -
Microporous membrane pleated filter cartridge main features: High interception rate, high liquidity, low pressure differential and a wide range of chemical compatibility;
-
The production process adopts unique hot melting process technology, no any adhesive, no foreign body release
It can meet the food,beverage, beer, chemical, pharmaceutical and other industries production requirements.
Polypropylene microporous membrane filter
PTFE membrane pleated filter
Hydrophobic PTFE filter
The filter medium is Hydrophobic PTFE microporous membrane filter: Strong hydrophobicity,
High holding rate, excellent chemical resistance and thermal stability, good strength, impact resistance of the forward & reverse pressure
Hydrophilic PTFE filter
The filter element medium for hydrphilic PTFE microporous membrane filter: The hydrophilic stability, high entrapment rate, excellent chemical resistance thermal stability, good strength, impact resistance of the forward & reverse pressure
Polyether Sulphone PES Pleated Filter
The PES pleated filter cartridge is constructed of imported polyethersulfone(PES) membrane media and non-woven support materials.The material of cage core and end caps are polypropylene.Adapters are thermally welded with media without using any glue, no any pollution. The PES filter cartridge is ideally suited for critical prefiltration in sterilizing applications and final filtration in a broad range of demanding non-sterile application, the inherently hydrophilic membrane contains no surfactant or wetting agents, which results in good filtration and flow rates.
Nylon N66 pleated membrane filter cartridge
The filter medium is hydrophilic nylon microporous membrane filter, It is composed by nylon membrane and the polypropylene support material hot melting, it is no dung, also applicable for the strict chemical and pharmaceutical industries
PVDF pleated cartridge filter
The PVDF pleated cartridge filter is constructed of imported natural hydrophobic polyvinylenedifluoride(PVDF) membrane media and non-woven support materials. The adaptors are thermally welded with media without using any glue, no any pollution
High filtration microns, high flow rate, better hydrophobicity, sterilization at high temperature as well as chemical resistance. It is widely used in gas or liquid pre-filtration and widely used in final filtration
Jumbo pleated membrane filter cartridge
The big jumbo pleated filter cartridge is constructed of deep polypropylene membrane, melt blown polypropylene, hydrophilic PES & PTFE. The non-woven support materials. This filter cartridges design increased the effective filtration area, not only can reduct the filter cartridges quantity, but also it can make the smaller housing size. Big flow rate and long service life, lower cost and human cost. The size is divided into 2 kinds of size: 83mm diameter & 131mm diameter. Adaptors are thermally welded with media without using any glue, no any pollution and droppings. Clean & stable, each filter cartridge has passed strict testing by 100% integrity
DOE opened pleated filter
The membrane's micron rating is optional. Options to order for this site include 0.03 to 0.45 microns in 10" to 40" length with either.
