Guangzhou Lvyuan Water Purification Equipment Co., Ltd. is an industrial filter manufacturer founded in 2009 that designs and manufactures stainless steel filter housings, stainless steel sterile water tanks, filter elements, filter bags, ultra-polymer materials, and sintered filter products. Buyers choose Lvyuan for OEM/ODM support, ISO9001 quality control, and multi-country certifications.

Guangzhou Lvyuan Water Purification Equipment Co., Ltd.
Began in 2009

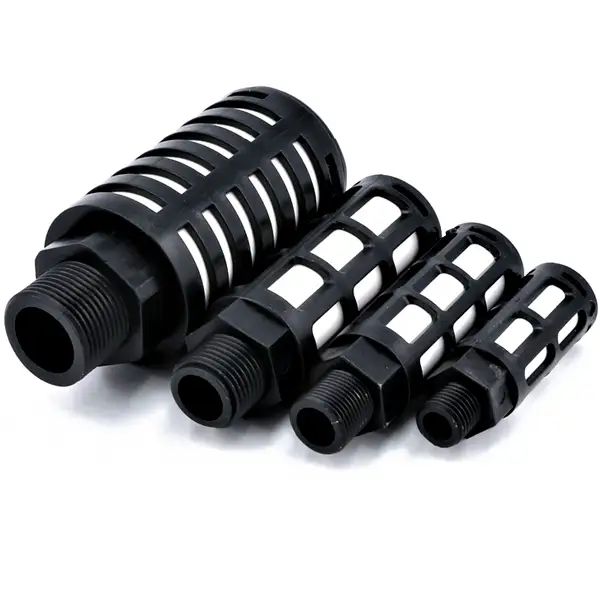

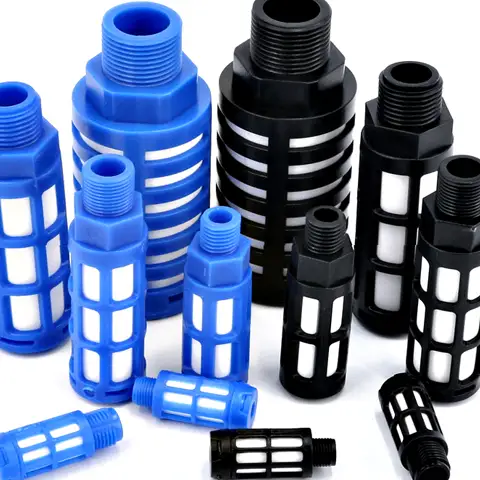

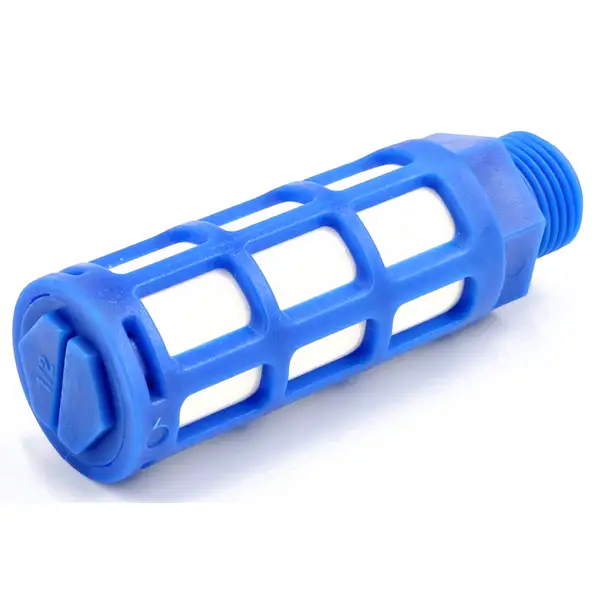

Exhaust Air Line Silencer spillover-prevention filters for discharge liquid bag
Exhaust Air Line Silencer spillover-prevention filters for discharge liquid bag
Exhaust Air Line Silencer spillover-prevention filters for discharge liquid bag
  1. Exhaust Air Line Silencer spillover-prevention filters for discharge liquid bag
  2. Exhaust Air Line Silencer spillover-prevention filters for discharge liquid bag
  3. Exhaust Air Line Silencer spillover-prevention filters for discharge liquid bag

Exhaust Air Line Silencer spillover-prevention filters for discharge liquid bag

item details
start port guangzhou
production capacity 10000 units/month
place of origin guangdong, china
payment t/t, paypal
moq 1 pcs
model ly-hfpl
delivery time within 7 working days
certification iso 9001
brand oem/lvyuan
Inquiry
Teile deine Liebe
Kategorien: , Schlagwörter: , , , , ,
Material:pe
Availability: OEM/ODM

Exhaust Air Line Silencer spillover-prevention filters for discharge liquid bag

1. High porosity to ensure a greater flow per unit area;

2. Smooth outer surface, impurities are not easy adhesion, back washing
easy and thorough;
3. Anti-fouling ability: the small size of the filter so that impurities can’t be retained in the filter body;
4. Resistance to strong acid, alkali corrosion, resistance to organic solvents;
5. Excellent mechanical properties;
6. No particle release.
7. Wide Product range and wide scope of application
Filter Media
PE, HDPE, PTFE, PVDF, PA/Nylon etc
Micron rate
0.2um, 0.5um, 1um, 3um, 5um, 10um, 25um, 30um, 50um, 75um, 100um, etc
Reference dimension(mm)
38x20x150, 50x20x1000, 50x31x1000, 50x38x1000, 65x31x1000, 65x38x1000, 64x44x1000, 78x62x750mm, etc.
Connector type
DOE, SOE, Flat, insert, thread, 226, 222, 215, M36, M30, M27, M25, M22, M14, M12, or as request.
Max. operating temperature
PE≤82℃; PTFE≥200℃; PA≤120℃

Exhaust Air Line Silencer spillover-prevention filters for discharge liquid bag 2

Exhaust Air Line Silencer spillover-prevention filters for discharge liquid bag 3

Rezensionen

Es gibt noch keine Rezensionen.

Schreibe die erste Rezension für „Exhaust Air Line Silencer spillover-prevention filters for discharge liquid bag“

Deine E-Mail-Adresse wird nicht veröffentlicht. Erforderliche Felder sind mit * markiert

Product Description

Sediment Filter
Replacement P/A/L/L Polypropylene depth filter cartridge price for oil paint hydraulic water filtration

Polypropylene melt blown filter cartridge or PP spun water filter, PP filter, PP filter cartridge is the most widely used filtration consumable products in domestic and industrial water treatment systems. PP melt blown filter cartridges (PPF) are made of 100% pure polypropylene fiber, providing broad wide chemical compatibility.

Melt Blown sediment filter cartridge has strong pollutants holding capacity. It can remove suspended substances, particulate and rust effectively, providing efficient filtration and long service life. It works an important role in the pre-filtration water treatment process.

We can customs-made PP or Nylon melt blown filter cartridges in all dimension (Length, Outer diameter, inner diameter) with 1 layer to more than 3 layers and multi-layers. Special PP/Nylon melt blown cartridge filters with varied specifications like groove, orange peel, pressure point, flat and embossing surface finish or equipped with different DOE or SOE end caps are also available.

All dimension can be custom-made. In order to work out the prices for you, please kindly advise your specification requirement and quantity.
Sediment Filter
Groove surface PP sediment filter cartridge
Flat surface PP sediment filter cartridge
Flat surface PP sediment filter cartridge
Orange peel surface PP filter cartridge
Orange peel surface PP filter cartridge
Embossing surface PP sediment cartridg
Embossing surface PP sediment cartridg
Pressure point surface PP sediment cartridge
Pressure point surface PP sediment cartridge
FlatFin end cap PP filter
FlatFin end cap PP filter
PP shell Polypropylene melt blown filter cartridge
PP shell Polypropylene melt blown filter cartridge
OEM Various size PP Nylon melt blown filter cartridge for water air filtration
OEM Various size PP/Nylon melt blown filter cartridge for water/air filtration
Big High Flow PP melt blown filter cartridge with OEM length and OEM diameters
Big High Flow PP melt blown filter cartridge with OEM length and OEM diameters

Specification

Product NamePP Melt Blown sediment filter cartridge
Length5, 10, 20, 30, 40", 50'', 60'' inch or customized
Micron Rate1, 3 ,5 ,10 ,20 ,25 ,30 ,50 ,75, 100 micron
End CapDOE/SOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat, 215+Flat/Fin
Inner Diameter28~30mm, or OEM
Outer Diameter60~65mm, Jumbo 110~115mm, or OEM
Gasket/O ring materialSilicon/EPDM/NBR/Viton
Material100% pure Polypropylene or Nylon
SurfaceGroove, Pressure points, Flat, Embrossing, Orange peel
Inner coreNone, PP or stainless steel
InterfaceFlat or insert
Max. Operating Pressure Difference:• 80°C: 1.2kg/cm2
• 60°C: 2.1kg/cm2
• 20°C: 4.2kg/cm2
Max. Operating Temperature80°C
Recommended Change-out Pressure Difference2.1 bar (kg/cm2)
Common weight100- 120g/10" (It can be customized)

Application

PP Filter Cartridge

1. Drinking Water Treatment
2. Industrial water treatment, like electronic, power, plating and oil industry.
3. Pre-filtration of RO/DI system
4. Food and Beverage
5. Sea Water Desalination
6. Chemical, solvent, wine, etc.
